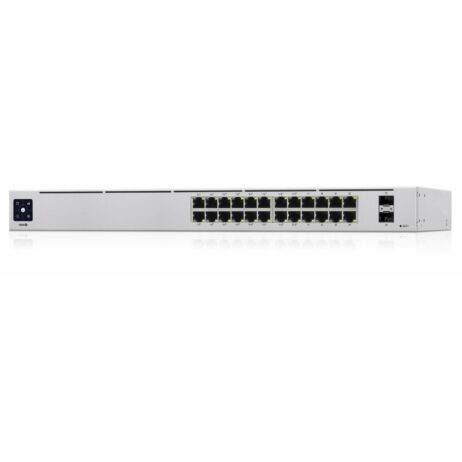

The USW-24 is a configurable Gigabit Layer 2 switch with twenty four Gigabit Ethernet ports including two SFP ports. It provides Gigabit links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24 features a 1.3″ touch LCM to provide status information. With a depth of 7.9″, the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Nánari upplýsingar hér
Leiðbeiningar hér
Specification
| Switch Type | Managed |
| Forwarding Rate | 38.69 Mpps |
| Tested ambient temperature | -5°C to 40°C |
| Switch Ports | 5 Ports |
| Switching Capacity | 52 Gbps |
| 10/100/1000 Ethernet ports | 24 |
| SFP ports | 2 |
| Power Method | 100-240VAC, 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 120W |
| Number of PoE-out ports | 0 |
| Supported Input Voltage Range | 100 to 240VAC |
| Max power consumption without attachments | 25 W |
